Sumber Sinar-X Mikro Fokus Tabung Tertutup Terintegrasi 90kV 5um
Properti Dasar
Tempat Asal:
Cina
Nama merek:
Unicomp
Sertifikasi:
CE
Nomor Model:
UNMS-U90D
Properti Perdagangan
Jumlah Pesanan Minimum:
1 set
Harga:
Can be negotiated
Ketentuan Pembayaran:
T/T, L/C
Kemampuan Pasokan:
100 per bulan
Ringkasan Produk
Tabung Sinar-X Microfocus Unicomp 90kV 5um Untuk Mesin Sinar-X Rangka Timah Semikonduktor Parameter Kunci Tegangan Tabung Maks.: 90kV Daya Tabung Maks.: 8W Ukuran Titik Minimum:
Detail Produk
Menyoroti:
Sumber Sinar X Mikrofokus Tabung Tertutup
,Sumber Sinar X Mikrofokus Tabung Terintegrasi
,Sumber Sinar X Terintegrasi 5um
Deskripsi Produk

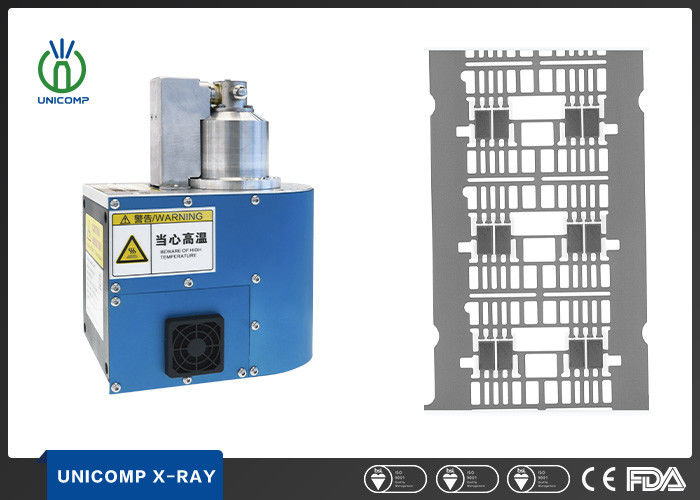

Tabung Sinar-X Microfocus Unicomp 90kV 5um Untuk Mesin Sinar-X Rangka Timah Semikonduktor
Parameter Kunci
-
Tegangan Tabung Maks.: 90kV
-
Daya Tabung Maks.: 8W
-
Ukuran Titik Minimum: <5μm @ 4W
-
Sudut Sinar: 45°
UNMS-U90D adalah tabung tertutup volume kecil terintegrasi Sumber Sinar-X Microfocus 90kV dengan teknologi katoda panas, ukuran titik fokus kecil, perbesaran tinggi, dan emisi Sinar-X yang stabil. Ia dapat menembus komponen elektronik, PCB, papan sirkuit rakitan, sel baterai, dll. dan mendapatkan gambar struktur internal yang jelas dan berkualitas tinggi.
Aplikasi
-
PCB dan perangkat semikonduktor
-
Manufaktur elektronik SMT, PCBA
-
Kabel dan konektor
-
Baterai konsumen 3C
Spesifikasi
| Rentang Tegangan Tabung Operasi | 0-90kV |
| Rentang Arus Tabung Operasi | 0-180μA |
| Daya Tabung Maksimum | 8W |
| Tegangan Input (DC) | +24±0.5V |
| Konsumsi Daya | Kurang dari 30W |
| Ukuran Titik Fokus | 7μm(5μm@4W) |
| Material/Ketebalan Jendela | Be/0.1mm |
| Diameter Jendela | 8mm |
| Sudut Sinar | 45° |
| Material Target | W |
| FOD | 10.2±0.2mm |
| Berat | Perkiraan 3.5kg |
| Interlock Keamanan | Hubungan Singkat Eksternal |
| Koneksi Kontrol | Kontrol analog |
| Mode Operasi | Kontinu |
| Suhu Lingkungan Operasi | 10-40℃ |
| Suhu Lingkungan Penyimpanan | 0-50℃ |
| Kelembaban Operasi dan Penyimpanan | 10-80% |
Gambar Sinar-X
