CX3000 Benchtop X Ray Machine Unit Kecil Untuk Memeriksa Telepon LED CSP
Detail Produk
sistem x ray elektronik
,peralatan x ray
,Benchtop X Ray Machine Unit Kecil

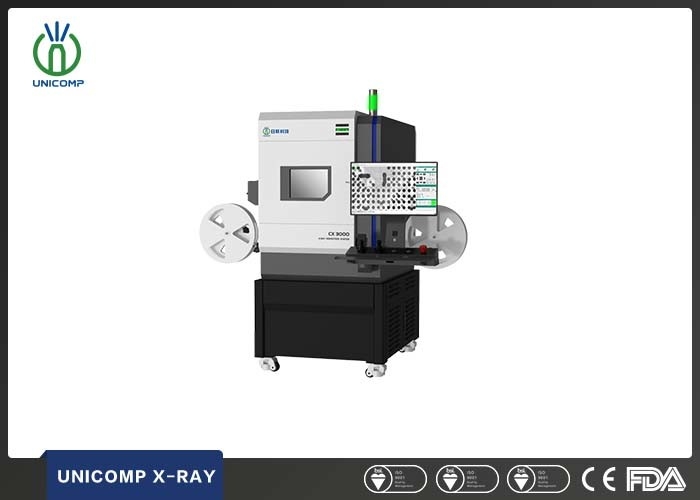

CX3000 Benchtop Electronics X-ray Machine Unit Kecil untuk Memeriksa Telepon LED CSP
FITUR:
1. 5μm tabung sinar-X 100kV;
2. Dynamic FPD dengan resolusi tinggi 1000 × 1124;
3. Dilengkapi dengan fixture 360 ° rotary untuk menghilangkan bayangan PoP;
4. Area pendeteksian dengan mudah diposisikan oleh rocker eksternal;
5. Pemeriksaan & Analisis solder sendi dan material struktur dalam;
6. Keselamatan tinggi dengan pengelasan timbal, interlock dan darurat tanpa batas.
LAYANAN KAMI
1. Permintaan anda akan dijawab dalam 12 jam.
2. Industri Asli untuk pelanggan, dengan harga yang kompetitif.
3. Kami memberikan garansi satu tahun, pelatihan gratis dan dukungan teknologi seumur hidup.
4. Kami dapat mengatur pengiriman melalui udara, DHL, Fedex, UPS, dan Laut, dll untuk Anda,
dan akan memberi Anda NO pelacakan. setelah pengiriman
5. Tim layanan purna jual yang terlatih dan profesional untuk mendukung Anda.
6. Manual akan dikemas dengan mesin. Ini akan menunjukkan cara menggunakan mesin selangkah demi selangkah.
7. Item hanya dikirim setelah pembayaran diterima.
| Barang | Definisi | Spesifikasi |
| Parameter Sistem | Ukuran | 750 (L) x570 (W) x890 (H) mm |
| Berat | 300kg | |
| Kekuasaan | 220AC / 50Hz | |
| Konsumsi daya | 0.5kW | |
| Tabung sinar-X | Mengetik | Tutup |
| Max.Voltage | 100kV | |
| Kekuatan penuh | 200μA | |
| Ukuran Spot | 5μm | |
| Detektor | Lebih intensif | FPD |
| Cakupan sinar-X | 48mm x 54mm | |
| Resolusi | 208Lp / cm | |
| Stasiun kerja | Ukuran Load.Loading | 200mm x 200mm |
| Area Max.Inspection | 200mm x 200mm | |
| Sudut Sudut Oblique | Perlengkapan rotari 360 ° (Opsional) | |
| Kebocoran sinar X | <1μSv / h | |
-
