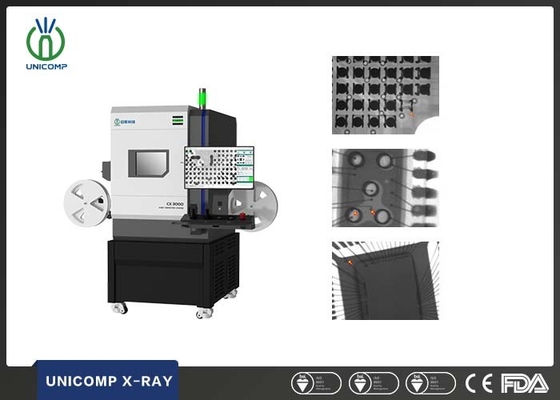

Portable 1uSv / h 90kV 0.5kW X Ray Inspection Machine Untuk PCBA
Properti Dasar
Tempat Asal:
Cina
Nama merek:
UNICOMP
Sertifikasi:
CE, FDA
Nomor Model:
CX3000
Properti Perdagangan
Jumlah Pesanan Minimum:
1 set
Harga:
can negotiate
Ketentuan Pembayaran:
T/T,L/C
Kemampuan Pasokan:
Set 30 per bulan
Ringkasan Produk
Spesifikasi Teknis Artikel Deskripsi Spesifikasi Tabung sinar-X Maks. Tegangan, Jenis 90kV, tertutup Konsumsi Daya 8W Ukuran titik fokus 5 μm Perbesar 200X Detektor Jenis detektor FPD Resolusi 101 LP/cm Area Efektif 58mm × 54mm SistemKomputer Sistem Operasi PC industri, Win 7, prosesor i7 Monitor 22 ...
Detail Produk
Menyoroti:
Mesin Inspeksi Sinar X 0
,5kW
,Mesin Inspeksi Sinar X 90kV
Name:
Mesin Sinar X Elektronik
Application:
SMT, EMS,BGA, Elektronik, CSP, LED, Flip Chip, Semikonduktor
X-Ray Coverage:
48mm x 54mm
X-Ray Leakage:
< 1uSv/jam
Weight:
300kg
Power Consumption:
0,5kW
Deskripsi Produk
Spesifikasi Teknis
| Artikel | Deskripsi | Spesifikasi |
| Tabung sinar-X | Maks. Tegangan, Jenis | 90kV, tertutup |
| Konsumsi Daya | 8W | |
| Ukuran titik fokus | 5 μm | |
| Perbesar | 200X | |
| Detektor | Jenis detektor | FPD |
| Resolusi | 101 LP/cm | |
| Area Efektif | 58mm × 54mm | |
| SistemKomputer | Sistem Operasi | PC industri, Win 7, prosesor i7 |
| Monitor | 22 ′′ LCD | |
| Perangkat lunak | Antarmuka Pengguna | Sistem pengolahan gambar multi-fungsi Unicomp DXI |
| Platform Kerja | Max. Luas muat | 235mm × 205mm |
| Max. Daerah inspeksi | 190mm × 165mm | |
| Max. Berat Pengisian | 5kg | |
| Kontrol Gerak | Joystick, Mouse dan Keypad | |
| Rotasi | Opsi perlengkapan miring 360° | |
| Navigasi | Kamera | Kamera HD, titik laser |
| sumbu | Manipulator | 3-sumbu dengan X / Y / Z |
| Fitur Peralatan | Sumber Daya | AC 110 ~ 220V (± 10%) 50Hz, 1kW |
| Rangka Ukuran | 750 ((L) × 570 ((W) × 890 ((H) mm | |
| Berat Sistem | 300 kg | |
| Jaminan | Garansi satu tahun, penggantian gratis bagian karena cacat produsen asli, tetapi mengharapkan kerusakan buatan manusia dan force majeure | |
| Aksesoris Opsional | Rotasi Jig |
|
APembuatan
- SMT, BGA, CSP, Flip Chip, Deteksi LED,
- Semikonduktor, komponen kemasan, industri baterai,
- Aluminium Die-casting, Molding Plastic, Keramik, industri khusus lainnya.
- Komponen elektronik, suku cadang mobil, fotovoltaik,
Fitur
- Tabung sinar-X tertutup 90kV 5μm
- FPD resolusi tinggi dengan sistem gerak 3-sumbu, memenuhi permintaan inspeksi dasar
- Navigasi di jendela, pelacakan sasaran dengan mudah
- Max. area muat 235mm × 205mm mm, max. area inspeksi 165mm × 190mm, dengan 200X pembesaran
Gambar sinar-X
Keamanan Sinar X: Semua mesin sinar-X yang diproduksi oleh Unicomp Technology memenuhi Peraturan FDA-CDRH CFR 21 1020.40 Subchapter J untuk sistem sinar-X kabinet.Standar FDA - CDRH untuk sistem sinar-x kabinet menyatakan bahwa emisi radiasi tidak akan melebihi. 5millirem / jam.2" dari permukaan eksternal manapun. mesin kami(Kebocoran <1μSv/jam)biasanya 5-10 kali lebih rendah dari standar internasional.
