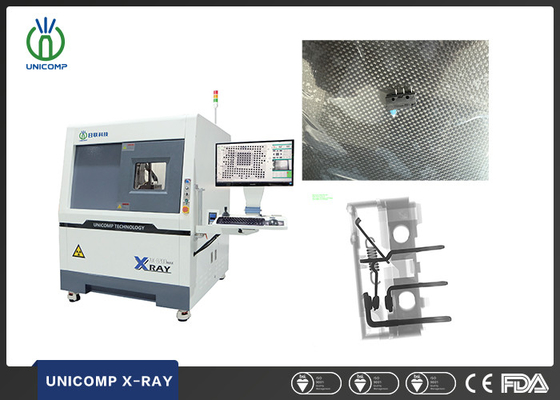

Peralatan inspeksi sinar-X tabung tegangan 0-90kV yang dapat disesuaikan untuk Switch Packing Weight 1500 Kg Termasuk
Properti Dasar
Tempat Asal:
Cina
Nama merek:
Unicomp
Sertifikasi:
CE, FDA
Nomor Model:
AX8200MAX
Properti Perdagangan
Jumlah Pesanan Minimum:
1 pcs
Harga:
can negotiate
Ketentuan Pembayaran:
T/T, L/C
Kemampuan Pasokan:
300 BULAN PER BULAN
Ringkasan Produk
Peralatan inspeksi sinar-X untuk Switch SpenekananDariMesin sinar X SMT Ringkasan Sistem Jejak 1280 ((W) × 1220 ((D) × 1615 ((H) mm Berat mesin 1250 kg Sumber Daya AC 110 ~ 220V, 50/60Hz Ukuran Kemasan Kayu Lapis 175 ((W) × 155 ((D) × 200 ((H) cm Berat kemasan 1250 kg Konsumsi Daya 1.0 kW Tabung ...
Detail Produk
Menyoroti:
Peralatan pemeriksaan sinar-X yang dapat disesuaikan
,Peralatan Inspeksi Sinar X Pengemasan Switch
,Peralatan inspeksi sinar X 0-90kV
Tube Voltage:
0~90kV (Dapat Disesuaikan)
Tube Type:
Tertutup
Focus Spot Size:
5μm
Detector:
Detektor Panel Datar (FPD)
Packing Weight:
1500 kg
Power Supply:
AC 110~220V, 50/60Hz
Deskripsi Produk
Peralatan inspeksi sinar-X untuk Switch
SpenekananDariMesin sinar X SMT
| Ringkasan Sistem | |
| Jejak | 1280 ((W) × 1220 ((D) × 1615 ((H) mm |
| Berat mesin | 1250 kg |
| Sumber Daya | AC 110 ~ 220V, 50/60Hz |
| Ukuran Kemasan Kayu Lapis | 175 ((W) × 155 ((D) × 200 ((H) cm |
| Berat kemasan | 1250 kg |
| Konsumsi Daya | 1.0 kW |
| Tabung sinar-X | |
| Tipe tabung | Disegel |
| Max. kekuatan | 8W |
| Tegangan | 0 ~ 90kV (diatur) |
| Ukuran Titik Fokus | 5 μm |
| Sistem Imaging | |
| Detektor | Detektor panel datar (FPD) |
| Ukuran piksel | 85 μm |
| Area Deteksi yang Efektif | 129*129mm |
| Tingkat frame | 30 fps |
| Pixel Matrix | 1536*1536 |
| Sistem pembesaran | 600X |
| Perangkat lunak | |
| Pengukuran otomatis | BGA Soldering Voids Pengukuran otomatis dan Data Dukungan/Output Grafis |
| Beberapa Alat Pengukuran | Dukungan Pengukuran Jarak, Sudut, Diameter, Poligon, laju pengisian PTH, dll. |
| Modus CNC | Inspeksi CNC yang dapat diprogram, operasi mudah dan ramah pengguna |
| Tampilan real-time | Real-time Menampilkan data kerja tegangan, arus, sudut, tanggal, dll |
| Navigasi | Sistem Posisi Titik Sasaran yang Nyaman |
| Sistem Pengendalian Gerak | |
| Kontrol Gerak | Joystick, Keypad, Mouse & Touch Panel |
| Max. Luas muat/berat | 610*610mm / 10kg |
| Max. Daerah inspeksi | 550*550mm |
| Pemandangan yang miring | Max. 60° |
| Manipulator | 6 sumbu dengan X / Y / Z1 / Z2 / T1 / T2 |
| PC industri | |
| Monitor | 24 FHD Layar LCD Sentuhan Interaktif |
| Sistem operasi | Windows 10 64bit |
| Hard disk | 1TB |
| RAM | 8GB |
| Model CPU | Prosesor Intel i7 |
| Fitur Lainnya | |
| Pintu terbuka | Slide Listrik |
| Keamanan Sinar X | < 1μSv/h (Menurut semua standar internasional) |
| Manajemen Otoritas | Sistem Pengendalian Akses Sidik Jari, dan Dukungan Akses Kata Sandi. |
| Operasi Keamanan | Penguncian elektromagnetik, lampu peringatan dan monitor kebocoran radiasi real-time |
| *Spesifikasi dapat berubah tanpa pemberitahuan, Semua merek dagang adalah milik pembuat sistem. | |
Bidang Aplikasi Mesin Sinar X
Digunakan secara luas untuk BGA, CSP, Flip Chip, LED, Fuse, Diode, PCB, Semikonduktor, Industri Baterai, Casting Logam Kecil, Modul Konektor Elektronik, Kabel, Komponen Aerospace, Industri Fotovoltaik,dll.
Fungsi & Fitur Mesin Sinar X
Inspeksi Gambar dari mesin sinar-X SMT
