CNC Programmable Automatic Inspection Elektronika Mesin X-Ray Unicomp AX7900 Dengan Sudut Kecil 60° Untuk Pemeriksaan Telepon yang Digunakan
Properti Dasar
Tempat Asal:
Cina
Nama merek:
UNICOMP
Sertifikasi:
CE, FDA
Nomor Model:
AX7900
Properti Perdagangan
Jumlah Pesanan Minimum:
1set
Harga:
can negotiate
Ketentuan Pembayaran:
T/T, L/C
Kemampuan Pasokan:
300 set per bulan
Ringkasan Produk
Pemeriksaan otomatis CNC yang dapat diprogram Mesin sinar-X elektronik Unicomp AX7900 dengan sudut miring 60° untuk pemeriksaan telepon bekas Deskripsi mesin IC X Ray AX7900: Ini banyak digunakan dalam berbagai industri termasuk BGA, CSP, Flip Chip, LED, Fuse, Diode, PCB, Semiconductor, Battery ...
Detail Produk
Menyoroti:
Mesin X Ray Elektronik yang dapat diprogram CNC
,Mesin X-ray Elektronik Inspeksi Otomatis
,Mesin X-Ray Inspeksi Telepon yang Digunakan
Voltage:
0~90kV (Dapat Disesuaikan)
Power Supply:
AC 110/220V, 50/60Hz
Size:
1280(P)x1220(L)x1615(T)mm
X-Ray Leakage:
< 1uSv/jam
Weight:
1100kg
Power Consumption:
1.0KW
Detector:
Detektor Panel Datar (FPD)
System Magnification:
600x
Pixel Matrix:
1536*1536mm
Effective Detection Area:
129*129mm
Deskripsi Produk

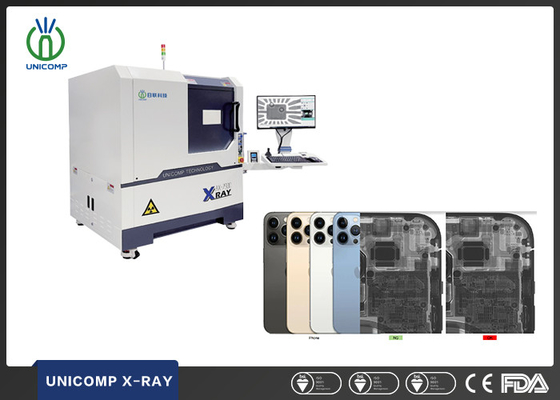

Pemeriksaan otomatis CNC yang dapat diprogram Mesin sinar-X elektronik Unicomp AX7900 dengan sudut miring 60° untuk pemeriksaan telepon bekas
Deskripsi mesin IC X Ray AX7900:
Ini banyak digunakan dalam berbagai industri termasuk BGA, CSP, Flip Chip, LED, Fuse, Diode, PCB, Semiconductor, Battery Manufacturing, Small Metal Casting, Electronic Connector Modules, Cables,Komponen Aerospace, Industri fotovoltaik, antara lain.
Fitur dari mesin IC Xray AX7900:
-
Tabel Inspeksi Laser Pinpoint dengan Dimensi Besar untuk Lokalisasi yang Tepat
-
Kontrol yang tepat dengan pemrograman CNC untuk penentuan posisi otomatis
- FPD Kemiringan ± 25
- Penguncian Elektromagnetik yang Aman
-
Sistem Pengelolaan Akses Sidik Jari
-
Pemantauan Radiasi Secara Real-Time
Spesifikasi Teknis AX7900
| Artikel | Definisi | Spesifikasi |
| Parameter Sistem | Ukuran | 1280 ((L) x 1220 ((W) x 1615 ((H) mm |
| Berat badan | 1100kg | |
| Kekuatan |
AC 110/220V, 50/60Hz
|
|
| Konsumsi Daya | 1.0kW | |
| Tabung sinar-X | Jenis |
Disegel
|
| Max.Voltage |
0 ~ 90kV (diatur)
|
|
| Max.Power | 8W | |
| Ukuran Titik | 5 μm | |
| Sistem sinar-X | Intensifier | FPD |
| Monitor | 224LCD | |
| Sistem pembesaran | 600X | |
| Daerah Deteksi | Max. Luas muat | 520mm x 420mm |
| Max.Daerah inspeksi | 460 mm x 400 mm | |
| Kebocoran sinar-X | < 1μSv/h (Menurut semua standar internasional)
|
|

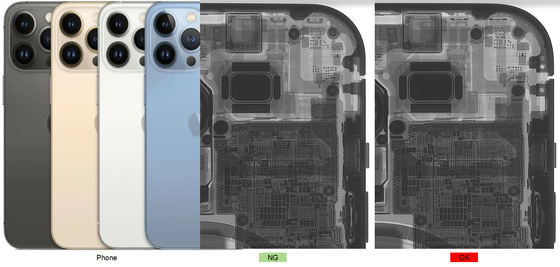

Inspeksi Gambar mesin IC X Ray AX7900:
Peringkat Keseluruhan
5 BINTANG
100%
Bintang 4
0
3 Bintang
0
Bintang 2
0
1 bintang
0
Semua Ulasan
-
MThe machine is excellent, the service is satisfactory, and the technology is highly professional.
-
JNICE
-
Pgood product
