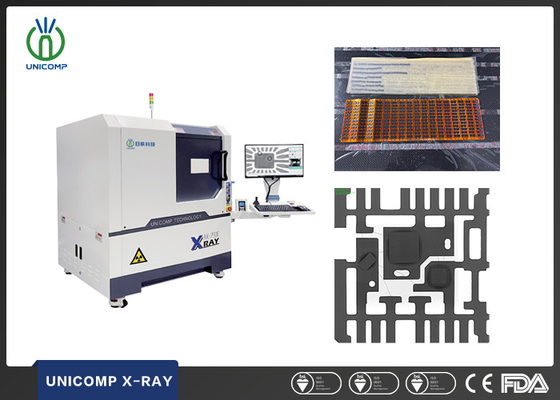

Upgrade ke Flat Panel Detector FPD Peralatan Pemeriksaan Sinar X Untuk IC dengan 1536*1536mm Pixel Matrix
Properti Dasar
Tempat Asal:
Cina
Nama merek:
UNICOMP
Sertifikasi:
CE, FDA
Nomor Model:
AX7900
Properti Perdagangan
Jumlah Pesanan Minimum:
1set
Harga:
can negotiate
Ketentuan Pembayaran:
T/T, L/C
Kemampuan Pasokan:
300 set per bulan
Ringkasan Produk
Peralatan inspeksi sinar-X untuk IC Deskripsi mesin IC X Ray AX7900: Ini memiliki aplikasi yang luas di berbagai bidang seperti BGA, CSP, Flip Chip, LED, Fuse, Diode, PCB, Semikonduktor, Produksi Baterai, Miniatur Metal Casting, Electronic Connector Assemblies, Wiring,Bagian Aerospace, dan Industri ...
Detail Produk
Menyoroti:
Peralatan pemeriksaan sinar-X IC
,Peralatan Inspeksi Sinar X 1536*1536mm
,Peralatan Inspeksi Sinar X Untuk IC
Voltage:
0~90kV (Dapat Disesuaikan)
Weight:
1100kg
Focus Spot Size:
5μm
Detector:
Detektor Panel Datar (FPD)
Pixel Size:
85μm
System Magnification:
600x
Pixel Matrix:
1536*1536mm
Deskripsi Produk
Peralatan inspeksi sinar-X untuk IC
Deskripsi mesin IC X Ray AX7900:
Ini memiliki aplikasi yang luas di berbagai bidang seperti BGA, CSP, Flip Chip, LED, Fuse, Diode, PCB, Semikonduktor, Produksi Baterai, Miniatur Metal Casting, Electronic Connector Assemblies, Wiring,Bagian Aerospace, dan Industri Fotovoltaik, untuk beberapa nama.
Fitur dari mesin IC Xray AX7900:
-
Sistem Pointer Laser Posisi Precision yang dipasang pada meja inspeksi besar
-
Kontrol yang tepat, Pemrograman CNC Posisi Otomatis
- FPD Kemiringan ± 25
- Penguncian Elektromagnetik yang Aman
-
Sistem Pengelolaan Akses Sidik Jari
-
Pemantauan Radiasi Secara Real-Time
Spesifikasi Teknis AX7900
| Artikel | Definisi | Spesifikasi |
| Parameter Sistem | Ukuran | 1280 ((L) x 1220 ((W) x 1615 ((H) mm |
| Berat badan | 1100kg | |
| Kekuatan |
AC 110/220V, 50/60Hz
|
|
| Konsumsi Daya | 1.0kW | |
| Tabung sinar-X | Jenis |
Disegel
|
| Max.Voltage |
0 ~ 90kV (diatur)
|
|
| Max.Power | 8W | |
| Ukuran Titik | 5 μm | |
| Sistem sinar-X | Intensifier | FPD |
| Monitor | 224LCD | |
| Sistem pembesaran | 600X | |
| Daerah Deteksi | Max. Luas muat | 520mm x 420mm |
| Max.Daerah inspeksi | 460 mm x 400 mm | |
| Kebocoran sinar-X | < 1μSv/h (Menurut semua standar internasional)
|
|
Inspeksi Gambar mesin IC X Ray AX7900:
