Ringkasan Produk

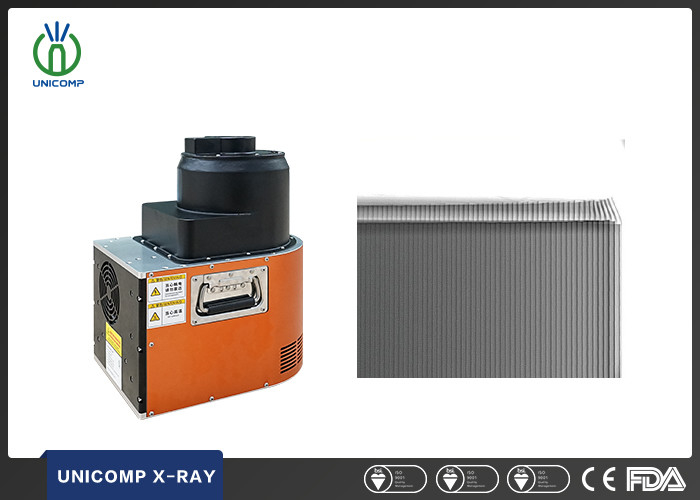

Unicomp 180kV Microfocus Sumber sinar-X Untuk IGBT substrat / modul Deskripsi 180kV Microfocus sinar-X Sumber: UNMS-U180B adalah tabung tertutup 180 kV Microfocus X-Ray Source menggunakan teknologi katode panas, kontrol digital dan 100% bahan baku domestik.perbesaran tinggi, emisi sinar-X yang ...
Detail Produk
Operating Tube Voltage Range:
40-180 kV
Operating Tube Current Range:
0-500 μA
Maximum Tube Power:
90W
Input Voltage (DC):
48 ± 0,5V
Power Consumption:
＜200W
FOD:
17,4 ± 0,5mm
Deskripsi Produk
Unicomp 180kV Microfocus Sumber sinar-X Untuk IGBT substrat / modul
Deskripsi 180kV Microfocus sinar-X Sumber:
UNMS-U180B adalah tabung tertutup 180 kV Microfocus X-Ray Source menggunakan teknologi katode panas, kontrol digital dan 100% bahan baku domestik.perbesaran tinggi, emisi sinar-X yang stabil, daya keluar yang lebih tinggi dan kemampuan penetrasi yang kuat.dengan kontrol port serial RS232Hal ini sangat cocok untuk aplikasi pencitraan dengan resolusi tinggi dan penetrasi tinggi.
Aplikasi:
-
Paket Sirkuit Terpadu
-
SMT, PCBA Produksi Elektronik
-
IGBT Substrate / Modul
-
Baterai EV
- Pemeriksaan bagian logam
- Pemeriksaan bagian plastik
Spesifikasi teknis:
| Kisaran tegangan tabung operasi | 40-180 kV | |
| Jangkauan arus tabung operasi | 0-500 μA | |
| Kekuatan tabung maksimum | 90W | |
| Tegangan Masuk (DC) | 48±0,5V | |
| Konsumsi Daya | < 200W | |
| Bahan jendela/Kebalinya | Be/0.50mm | |
| Diameter jendela | 40±0,5 mm | |
| Sudut balok | 94±3° | |
| Bahan sasaran | Thungsten | |
| FOD | 170,4 ± 0,5 mm | |
| Berat badan | Sekitar 34kg. | |
| Penguncian aman | Sirkuit pendek eksternal | |
| Koneksi Kontrol | Antarmuka: RS-232 (soket 9-pin) | |
| Mode Operasi | Berkelanjutan |

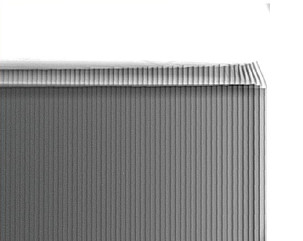

Gambar Pemeriksaan:

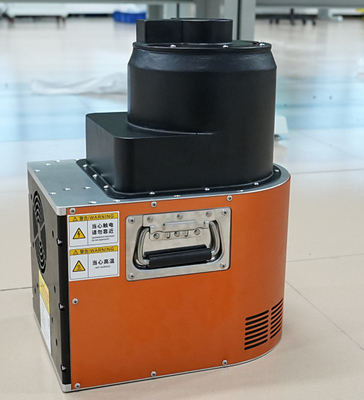

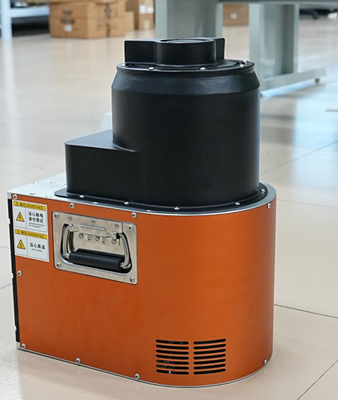

Jejak kaki:
